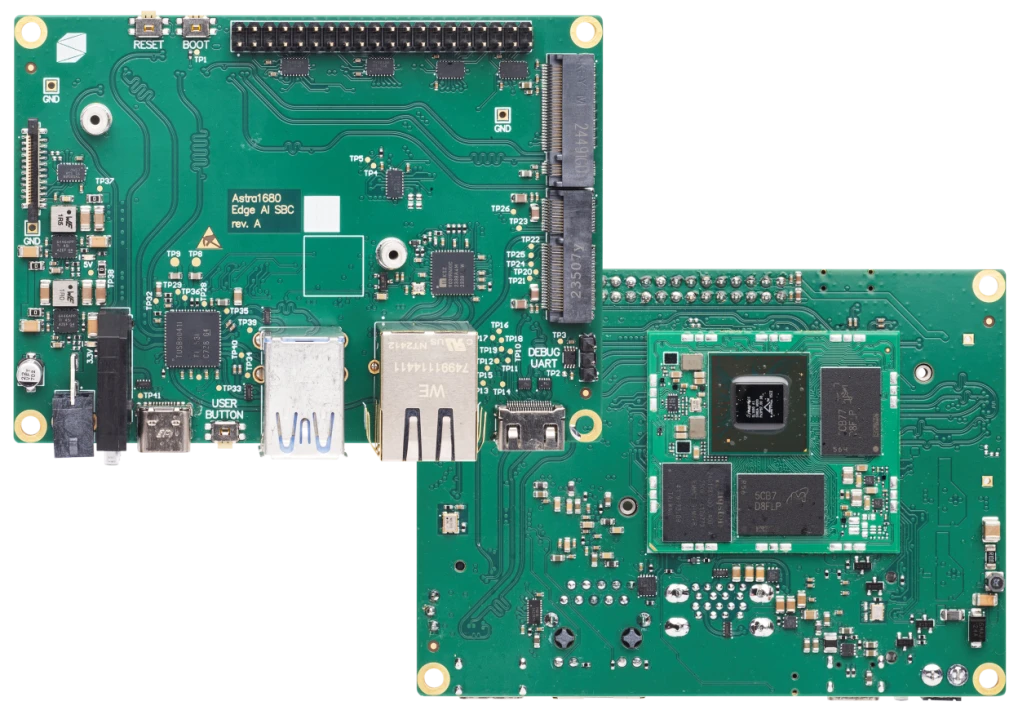

Grinn AstraOneSBC-1680

Grinn AstraOneSBC-1680 is a Pico-ITX single board computer designed for demanding industrial and AI applications. With mini-HDMI, Gigabit Ethernet, dual USB 3.0, CSI camera input, dual M.2 slots (PCIe Gen2 and USB/UART/SDIO), and a 40-pin expansion header, it provides the flexibility to connect vision systems, storage, and communication modules. Powered by the Synaptics Astra platform, AstraOneSBC-1680 combines a quad-core CPU with an integrated 8TOPS NPU delivering real-time AI performance directly at the edge.

  • Industrial
  • Industrial controllers
  • Image Recognition
  • High-performance AI
  • Smart Cameras
  • Robotics
  • AI-supported computer vision
Supporting
  • Yocto
  • Processor
    • 4× Arm Cortex-A73 @ 2.1 GHz, 64-bit
  • AI Accelerator
    • Integrated NPU (up to 8 TOPS)
  • RAM
    • 4GB LPDDR4
  • Flash / Storage
    • 16GB eMMC
  • Display
    • mini-HDMI
    • 2160p60
    • HDR10+
    • HDCP 2.3
    • CEC
    • eARC/eARC Rx
  • Network
    • 1× RJ-45 GbE
    • RGMII PHY
    • diagnostics LEDs
  • USB
    • 2× USB-A 3.0
    • 1× USB-C 2.0
  • Camera
    • 1× 4-lane MIPI CSI-2
    • 2.5 Gbps/lane
  • Wireless / AI Expansion
    • 2× M.2 (E-key USB/SDIO/UART, M-key x2 PCIe Gen2)
  • GPIO
    • 1× 40-pin header
    • 3.3 V logic
  • Security
    • TrustZone + Infineon OPTIGA Trust M
  • Power
    • 12…24 V DC (2A recommended supply)
    • passive cooling
  • Temp Support
    • Extended: −20…+70 °C
    • Industrial: −40…+85 °C target
  • Dimensions
    • 100 × 72 mm (Pico-ITX)
Grinn AstraOneSBC-1680
