system-on-module

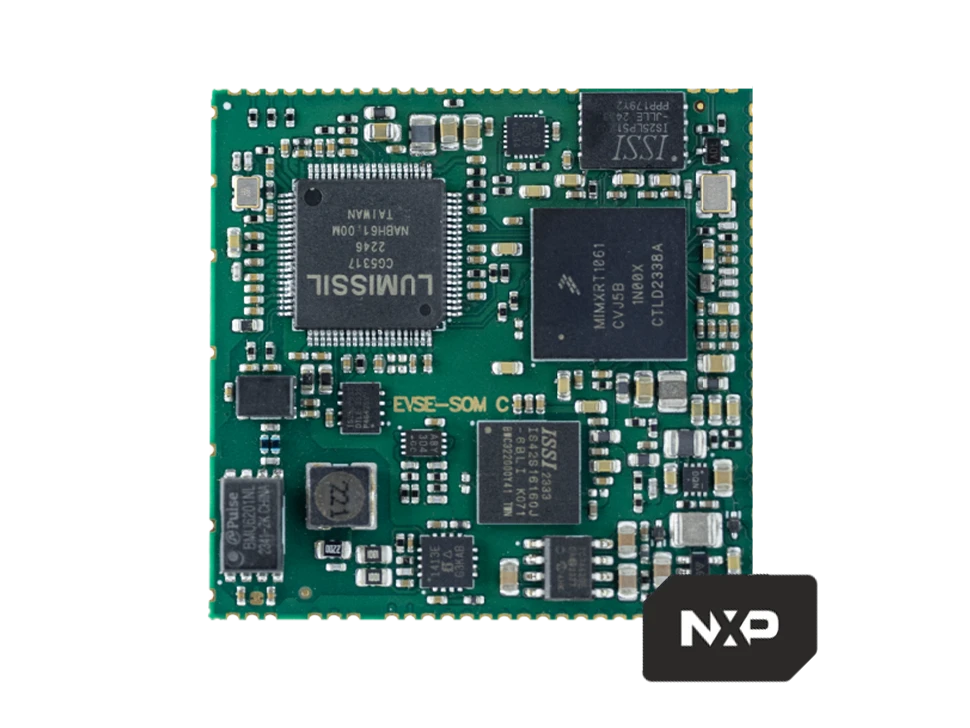

Grinn EvseSOM

The Grinn EvseSOM, powered by the NXP i.MX RT1061 processor, is a System-on-Module optimized for eMobility applications supporting communication standards HomePlug Green PHY, ISO 15118-2 and ISO 15118-20, making it perfectly suited for EVSE solutions.


Use bidirectional charging capabilities of your electric vehicle to power a building, feed energy back into the electricity grid, or provide backup power during a blackout or an emergency.


The software stack developed by ARROW enables communication compatible with the following standards:


  • IEC 61851-1
  • DIN 70121
  • ISO 15118-2 & 20 (AC, DC)
Developers guide
Fields of Application
  • Electric Vehicle Charging Stations
  • V2H
  • Smart Grids
  • Industrial Applications
  • V2G
Specification
  • Processor
    • NXP i.MX RT1061
  • Interfaces
    • UART
    • USB
    • CAN
    • SPI
    • I2C
  • Interface Voltage
    • 3.3 V
  • Pilot Voltage
    • +/- 12V
  • Ambient operating temperature
    • -40 °C to +85 °C
  • Size
    • 42.5 x 43.5 x 5.25mm
  • Form Factor
    • Custom LGA
  • Power Supply
    • Single 5V power supply
  • Chipset
    • HomePlug Green PHY operated by Lumissil IS31CG5317
Grinn EvseSOM
