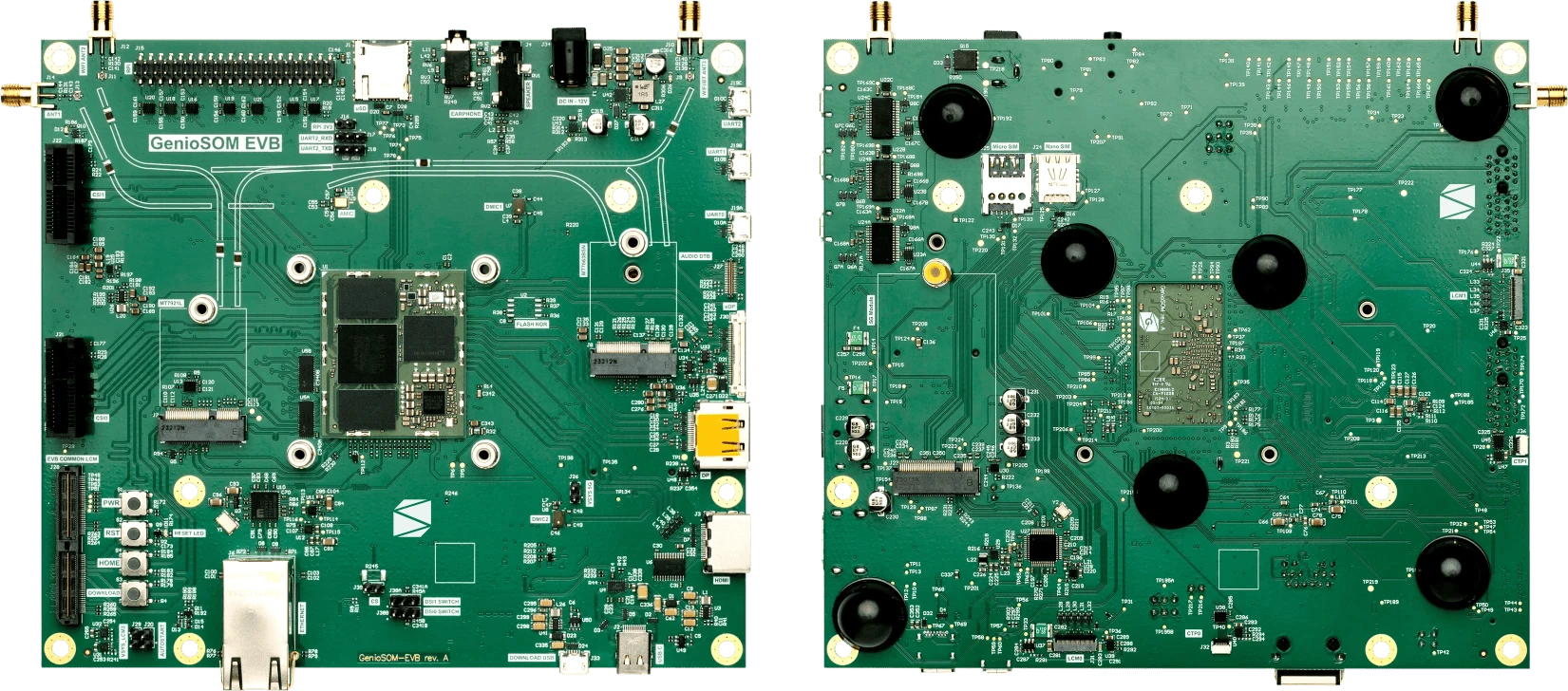

Grinn GenioEVB-700

Grinn GenioEVB-700 is a versatile evaluation board built to showcase the capabilities of the Grinn GenioSOM-700 module. With a comprehensive set of peripherals, debugging tools, and connectivity options, it accelerates AI, IoT, and multimedia application development. Its well-thought-out design ensures seamless integration of sensors, displays, and communication modules, simplifying prototyping and reducing time-to-market for new products.

The board includes advanced debugging features, Raspberry Pi HAT compatibility, and interfaces for displays, cameras, and wireless communication, making it a perfect reference for developers designing next-generation devices.

Product Withdrawal Notice: This product has been deprecated and withdrawn from the market. It is no longer offered for sale, promotion, new design-in, or deployment in new projects. Existing documentation, reference materials, and design files, if provided, are retained for informational and legacy support purposes only.

Wiki page

Datasheet

Fields of Application

AI-driven computer vision
Multimedia and edge computing
Smart Home
Smart Cameras
Robotics
Industrial automation

SpecIfication

Convenience and Debugging
- On-board debugger for seamless development
- Programming via a single USB cable
- Voltage, current, and signal measurement points
Display
- eDP
- HDMI
- DisplayPort (DP)
- custom display module connector
Camera
- 2x CSI-2 camera interfaces
Wireless
- 2x M.2 connectors for WiFi and Bluetooth modules
- M.2 socket for 5G module
- 5G
- WiFi
- Bluetooth
Audio
- 3 MEMS microphones
- 2x 3.5mm audio jacks
USB
- USB-C port
- Micro USB OTG
- x built-in USB-to-UART interfaces
Compatibility and Expansion
- Raspberry Pi HAT-compatible interface for added flexibility
- MicroSD card socket for additional storage
Networking
- 10/100/1000 Mbps Ethernet PHY with RGMII interface
Power
- Single power input with a 2.5/5.5mm DC jack
Other
- DSI connectors with dedicated switch for dual displays

ready-to-use

Other products

Grinn Terrasat-NTN

A compact, high-performance reference design that brings reliable satellite-based IoT connectivity

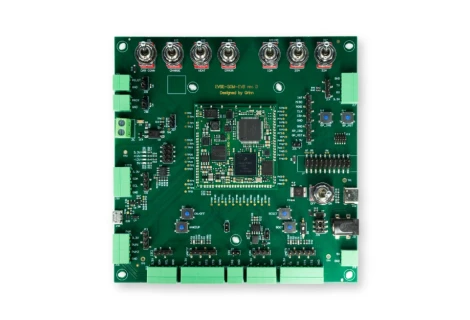

Grinn EvseSOM EVB
