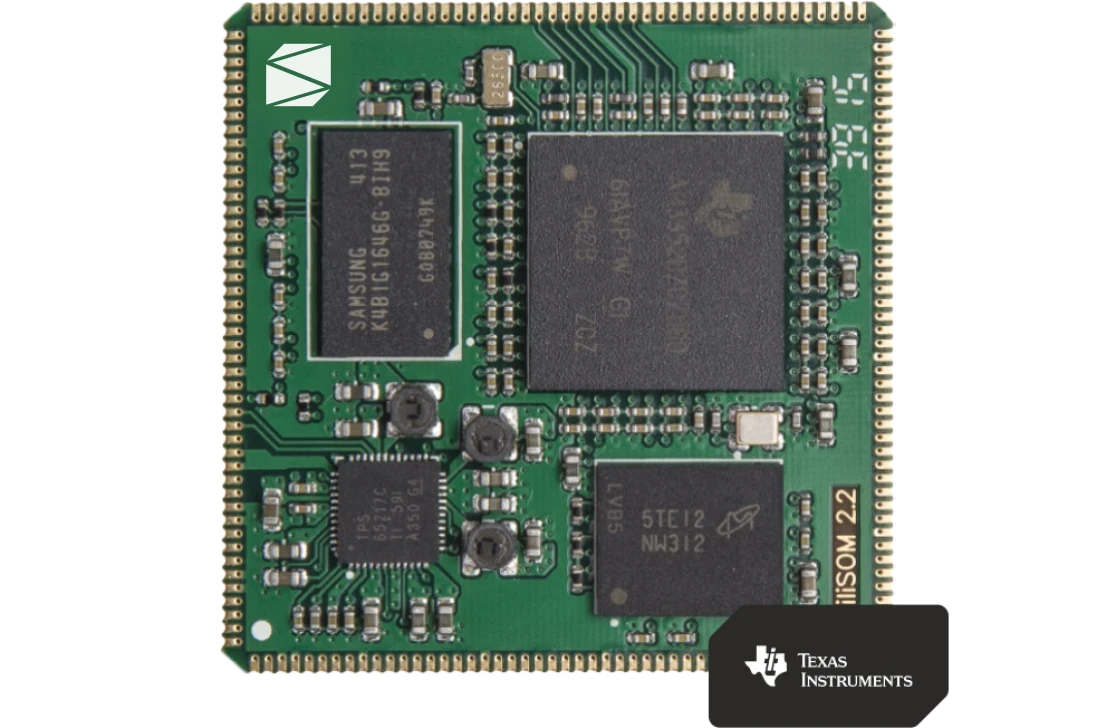

Grinn SitaraSOM-335 (ChiliSOM)

ChiliSOM is ideal for applications requiring a high degree of density and high computational power at extremely low power consumption. The module is designed to operate with all major operating systems. It is preconfigured for Linux and Android. With a rich set of peripherals, the module is designed to cater for a wide range of applications.

Wiki page

Datasheet

Fields of application

IOT
M2M
Industrial
Medical devices
Home automation
Cloud solution
HMI

Supporting

Specification

Processor
- TI AM335X
- ARM Cortex A8 up to 1GHz with NEO
Memory
- DDR3 up to 512MB
Storage
- NAND Flash 256MB
Package
- 184-pin 0.8mm pin raster
Size
- 40mm x 40mm x 3mm
Power supply
- Single 5V DC or 3.7V Li-Ion/Li-Po battery cell
Battery charger
- Integrated single Li-Ion cell battery charger
Multimedia
- Parallel 24bit Display Interface (up to 2048x2048) optional PowerVR SGX530 3G Graphics Engine
OS support
- Linux, Android
Operating temperature
- Commercial: 0 to +70°C
- Industrial: -20 to +85° C
Connectivity
- 2 x 10/100/1000 Ethernet
- 2 x USB2 OTG
- 2 x CAN
- 6x UART
- 2 x McASP
- 2x SPI
- 3x I2C
- 3 x eHRPWM
- ADC (12-bit, 8-ch)
Security
- Crypto Engine(AES with DPA, TDES/SHA/RSA)
- Tamper Monitor
- Secure Boot
- SIMV2/EVMSIM X 2
- OTF DRAM Encryption
