system-on-module

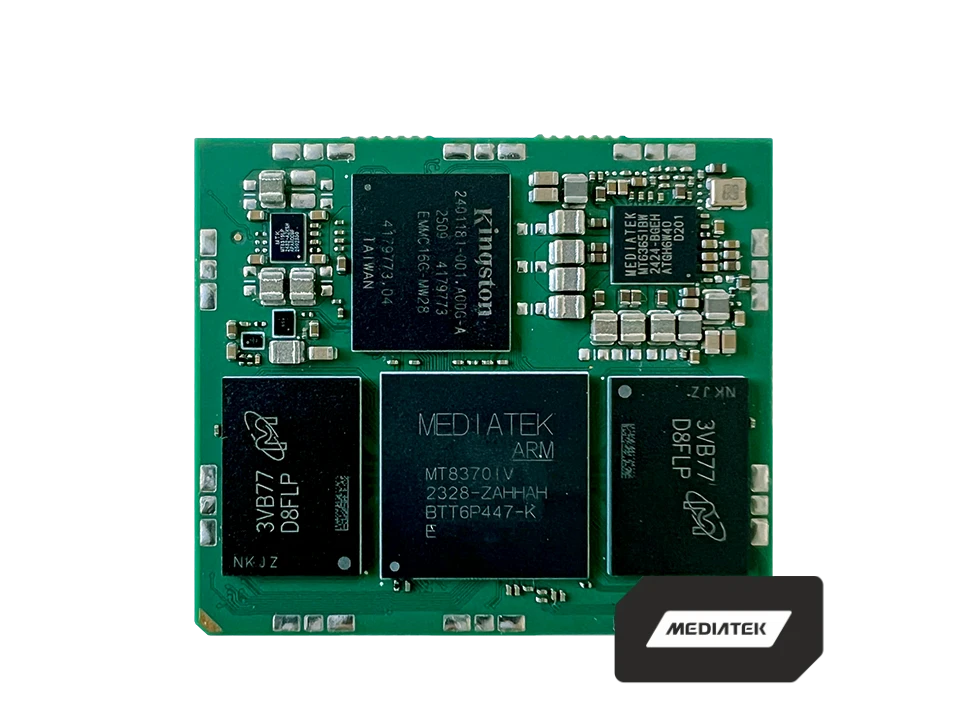

Grinn GenioSOM-510

The Grinn GenioSOM-510 is an advanced System on Module (SoM) designed to meet the performance and efficiency needs of Artificial Intelligence and Internet of Things applications. Leveraging a powerful MediaTek® Genio 510 (MT8370) IoT application processor, this SoM is ideal for edge computing scenarios that demand real-time processing and multimedia capabilities.

Fields of application
  • Industrial Applications
  • Smart Home
  • Multimedia systems
  • Image Recognition
Supporting
  • Linux
  • Yocto
Specification
  • Processor
    • CPU: 2x Arm Cortex-A78, 4x Arm Cortex-A55
    • GPU: Arm Mali-G57 MC2
    • NPU: MediaTek 5th Gen., 3.2 TOPS
    • AudioDSP: Cadence Tensilica HiFi 5
  • Memory and Storage
    • 2x 2GB LPDDR4 RAM (optional 2x 4GB)
    • 16GB eMMC (up to 64GB)
  • Video Input
    • 2x MIPI CSI-2 (4L)
    • Virtual channel: 8x FHD30
  • Display
    • 1x HDMI 2.0
    • 1x DP 1.4
    • 1x eDP 1.2
    • 2x MIPI-DSI (4L)
    • Dual display, max. 4K60 + FHD60
  • Interfaces
    • 2x USB 2.0, 1x USB 3.1 Gen 1
    • 1x Eth Gb MAC
    • 1x PCIe 2.0 (1L)
    • 4x UART
    • 5x I2C, 2x I2C/I3C
    • 6x SPI
  • Audio
    • 2x I2S
    • Support for external audio codec integration
  • Power
    • Input voltage 3.15V .. 5.0V
  • Form Factor
    • Dimensions: 37 x 42.6 mm
    • LGA312 package
  • Ambient operating temperature
    • -20°C to 70°C (Extended)
    • -40°C to 85°C (Industrial)
  • Multimedia
    • Video playback: 4K@60fps H.264/H.265
    • Video encoding: 1080p@60fps H.264/H.265
  • Connectivity
    • Gigabit Ethernet (via external PHY)
    • Wi-Fi / BT support via external module
  • Video Decode
    • H.264 / H.265 / VP9 / AV1 (4K60)
    • MPEG4 / VP8 (FHD60)
  • Video Encode
    • H.264 / H265 (4K30)

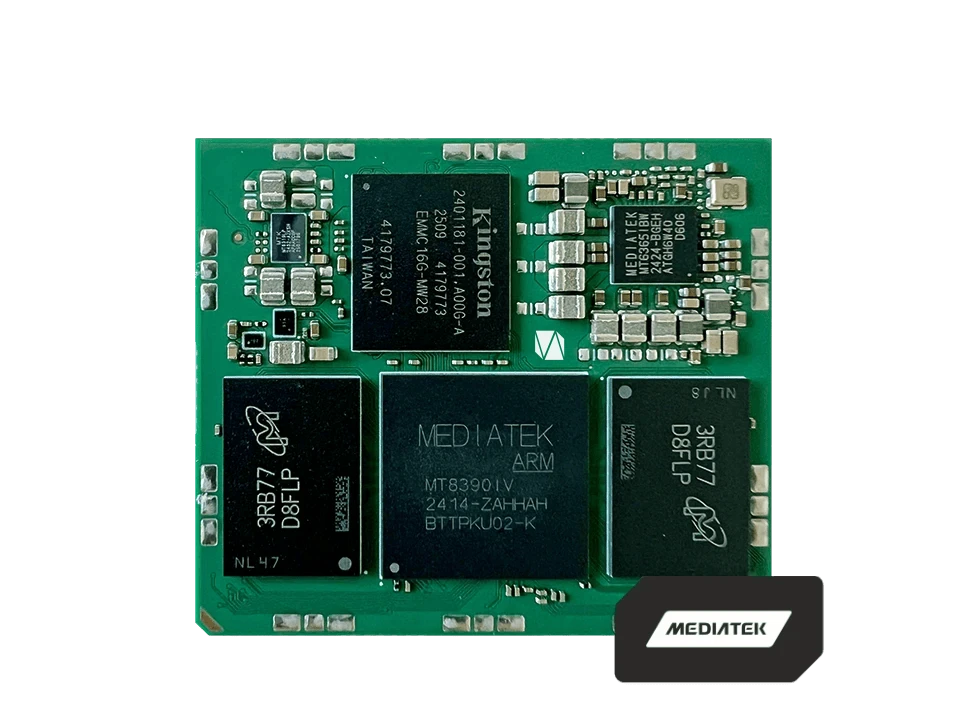

Grinn GenioSOM-510
ready-to-use

Other products

Grinn GenioEVB-700
Grinn GenioEVB-700

Grinn GenioEVB-700 is a versatile evaluation board built to showcase the capabilities of the Grinn GenioSOM-700 module.

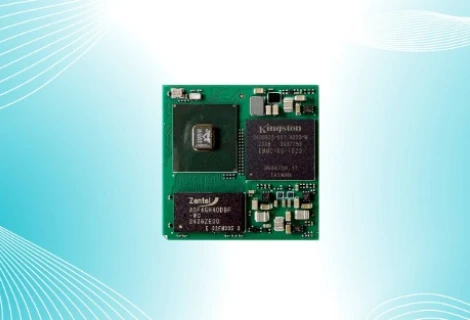

Grinn AstraSOM-261x
