system-on-module

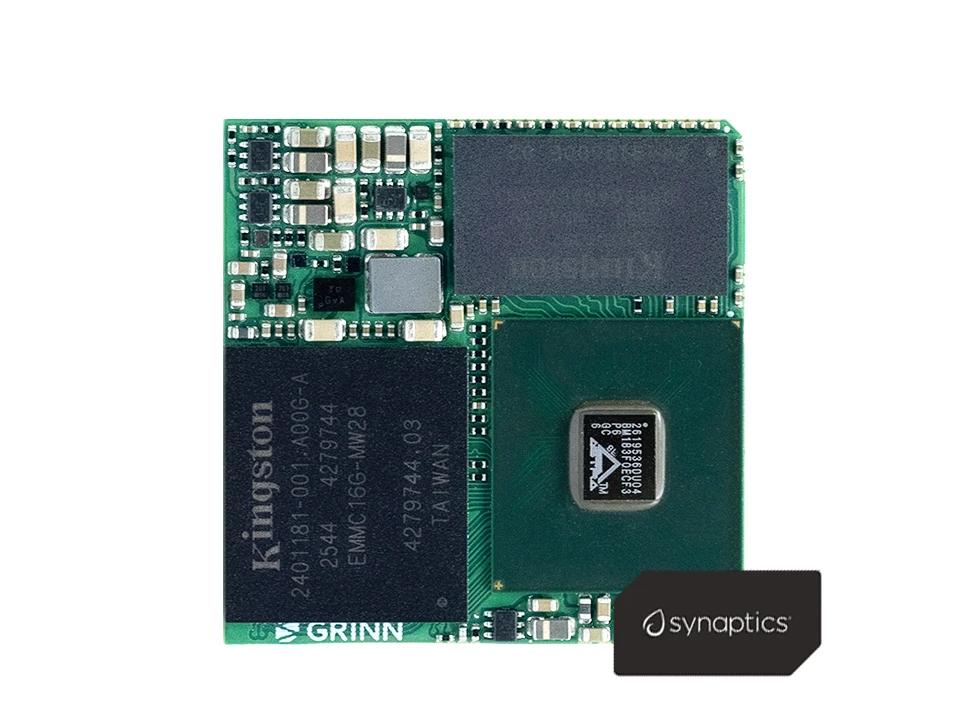

Grinn AstraSOM-261x

Equipped with a dual-core Arm® Cortex-A55 processor, Mali-G31 GPU, and a dedicated 1 TOPs Neural Processing Unit, the Grinn AstraSOM261x delivers powerful Edge AI performance in the world's smallest 25x25mm form factor. Supporting Full HD @ 60fps and built on an LGA178 footprint with full GPIO access, it's engineered for smart industrial, medical, and consumer devices. Enjoy robust connectivity with Dual Ethernet (TSN/1588), MIPI-CSI/DSI, USB 2.0, and CAN-FD — all with enterprise-grade security and a wide operating temperature range of -40°C to +85°C.

Fields of application
  • Smart Cameras
  • Industrial
  • Medical Devices
  • Smart Home
  • Wearables
Supporting
  • Yocto
Specification
  • Processor
    • 2x Cortex A55 2GHz
    • 1x Cortex M52 200MHz
    • 1 TOPS NPU
  • Memory
    • 32-bit LPDDR4X 3733Mbps, up to 8GB
  • Storage
    • 16GB, up to 64GB
  • Video Input
    • 1x MIPI CSI-2 2-lane
  • Display
    • 1x MIPI DSI 4 lane
  • Interface
    • 2x USB 2.0
    • 2x Gb ETH MAC
  • Miscellaneous
    • 2x CAN
    • 8x UART
    • 4x I2C
    • 5x SPI
    • 4x ADC
  • Temp. Range
    • -20°C - 70°C - Extended
    • -40°C - 85°C - Industrial
  • Form Factor
    • 25x25mm, LGA178
  • Input Voltage
    • 3.2V..5.5V
Grinn AstraSOM-261x
ready-to-use

Other products

Grinn MiniSOM-8M
Grinn MiniSOM-8M

System on Module (SoM) featuring the i.MX 8M Mini processor, optimized for low power consumption and high performance.

Grinn SitaraSOM-335 (ChiliSOM)
Grinn SitaraSOM-335 (ChiliSOM)

System On Module for IoT An ultra-small, extremely low-power, state-of-the-art module based on ARM Cortex-A8 processor

Grinn Multisense‑NTN
Grinn Multisense‑NTN

Satellite IoT sensor platform for remote data collection. Grinn Multisense‑NTN is a battery-powered IoT device designed for long-range, low-power data collection using LTE NB-IoT over satellite (NTN). It supports 3GPP Release 14, includes a nanoSIM slot, and operates on four long-life AA lithium batteries, enabling reliable performance in remote environments. With an IP69K-rated enclosure, Multisense‑NTN is built to withstand dust, water, and high-pressure cleaning—making it ideal for industrial, outdoor, and agricultural applications.
