system-on-module

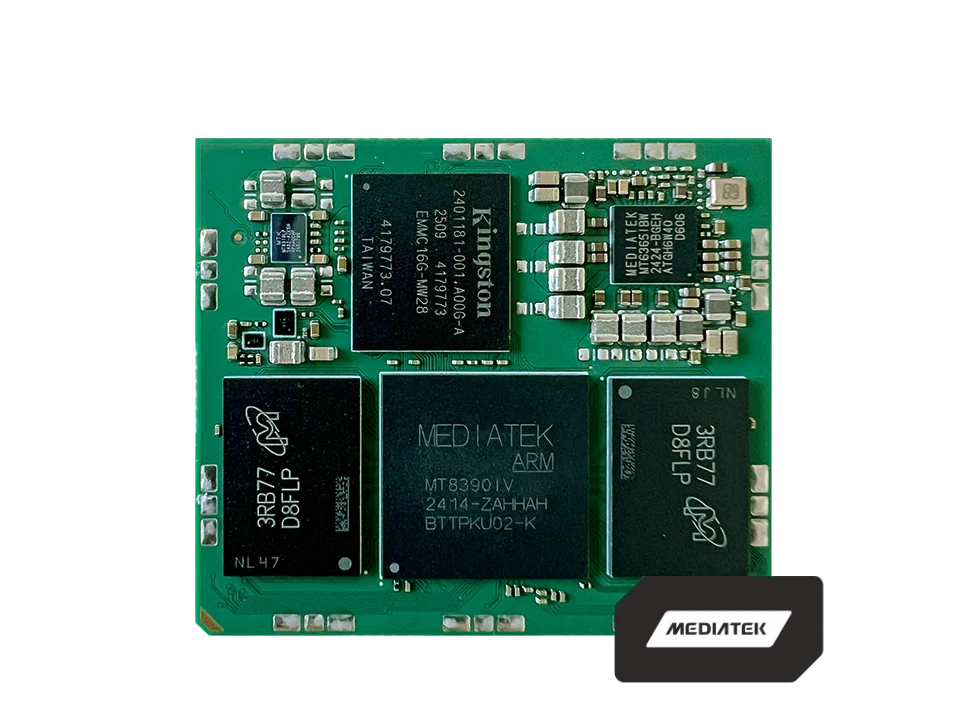

Grinn GenioSOM-700

The Grinn GenioSOM-700 is a high-performance System on Module designed for advanced AI and IoT applications. Powered by the MediaTek® MT8390 processor, it integrates dual-core Arm® Cortex®-A78 and hexa-core Cortex®-A55 CPUs, a Mali™-G57 GPU, and a Tensilica® AI accelerator, offering exceptional capabilities in edge computing, multimedia processing, and real-time AI tasks. With support for 4K video processing, robust connectivity options, and an optimized compact design, it is ideal for smart home devices, industrial automation, and computer vision systems.

Grinn GenioSOM-700 powers the following products:

Datasheet

Fields of application

Industrial
Smart Home
Multimedia systems
Image Recognition

Supporting

Specification

Processor
- CPU: 2x Arm Cortex-A78, 6x Arm Cortex-A55
- GPU: Arm Mali-G57 MC3
- NPU: MediaTek 5th Gen., 4.0 TOPS
- AudioDSP: Cadence Tensilica HiFi 5
Memory and storage
- 2x 2GB LPDDR4 RAM (optional 2x 4GB)
- 16GB eMMC (up to 64GB)
Video input
- 2x MIPI CSI-2 (4L)
- Virtual channel: 8x FHD30
Video decode
- H.264 / H.265 / VP9 / AV1 (4K75)
- MPEG4 / VP8 (FHD60)
Video encode
- H.264 / H265 (4K30)
Display
- 1x HDMI 2.0
- 1x DP 1.4
- 1x eDP 1.4
- 2x MIPI-DSI (4L)
- Dual display, max. 4K60 + 4K30
Interfaces
- 2x USB 2.0, 1x USB 3.1 Gen 1
- 1x Eth Gb MAC
- 1x PCIe 2.0 (1L)
- 4x UART
- 5x I2C, 2x I2C/I3C
- 6x SPI
Power
- Input voltage 3.15V .. 5.0V
Temperature range
- Extended -20C..+70C
Form factor
- Dimensions: 37 x 42.6 mm
- LGA312 package

ready-to-use
